Model: Twin screw 75
Types of raw materials: PA6 Molding temperature: 170-230 Celsius
1. Testing Data: | |||||
1.1 Energy saving data | |||||
1.1.1 Without the insulation cover | |||||
Machine | test times | test duration | Power consumption of the whole machine | ||
Twin screw 75 | 1 | 60 minutes | 29.7KWH | ||
1.1.2 After installing the insulation covers | |||||
Machine | test times | test duration | Power consumption of the whole machine | ||
Twin screw 75 | 1 | 60 minutes | 26.3KWH | ||
1.2 Energy saving result | |||||
energy saving (one hour) | energy saving ratio (whole machine) | daily energy saving | monthly energy saving | yearly energy saving | |
3.4KWH | 11.5% | 82.0KWH | 2121.0KWH | 25,459KWH | |
cost per KWH | daily cost saving | monthly cost saving | yearly cost saving | ||
RMB 0.8 | RMB 65.6 | RMB 1696.8 | RMB 20367.2 | ||
Environmental benefits:
It can reduce CO2 (carbon dioxide) emissions by 24,000kg and save 9,600kg of standard coal every year.
2. Testing photos

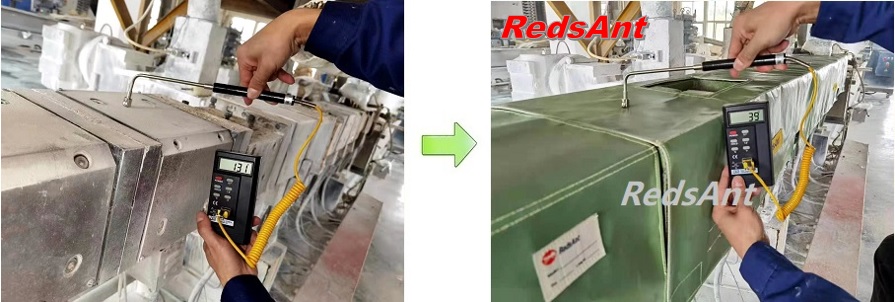

Surface temperature test without RedsAnt insulation jackets Surface temperature test with RedsAnt insulation jackets

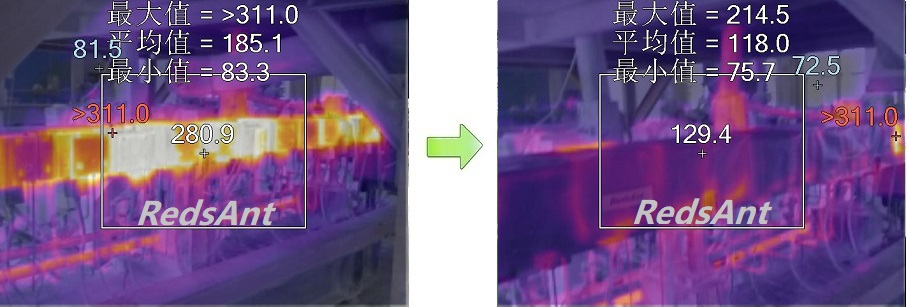

Thermal Imaging without RedsAnt barrel insulation jackets Thermal Imaging with RedsAnt barrel insulation jackets

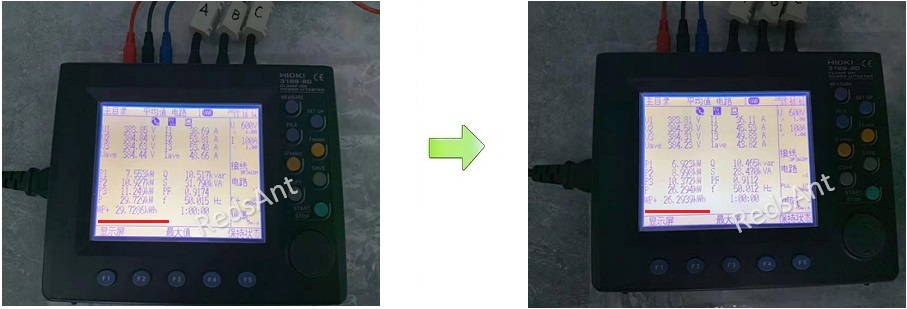

60 minutes power consumption 60 minutes power consumption
(without RedsAnt insulation jackets) (after installing RedsAnt insulation jackets)
