Energy Saving Test Report of Injection Molding Machine

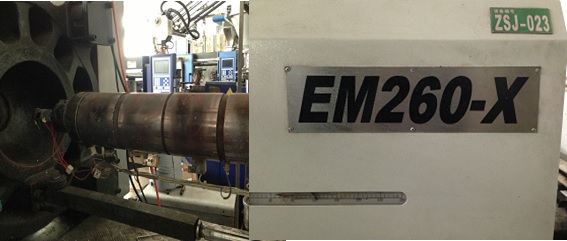

Model: Chen Hsong EM260-X
1. Testing Data: | |||||
1.1 Energy saving data | |||||
1.1.1 Without the insulation cover | |||||
Machine | test times | test duration | coil power consumption | ||
EM260 | 1 | 60 minutes | 2.1066KWH | ||
1.1.2 After installing the insulation covers | |||||
Machine | test times | test duration | coil power consumption | ||
EM260 | 1 | 60 minutes | 1.2023KWH | ||
1.2 Energy saving result | |||||
energy saving | energy saving ratio | daily energy saving | monthly energy saving | yearly energy saving | |
0.9043KWH | 42% | 21.7KWH | 564KWH | 6,771KWH | |
cost per KWH | daily cost saving | monthly cost saving | yearly cost saving | ||
RMB 1.00 | RMB 21.7 | RMB 564 | RMB 6771 | ||

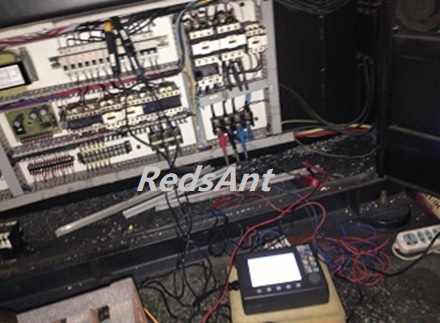

2. Testing photos

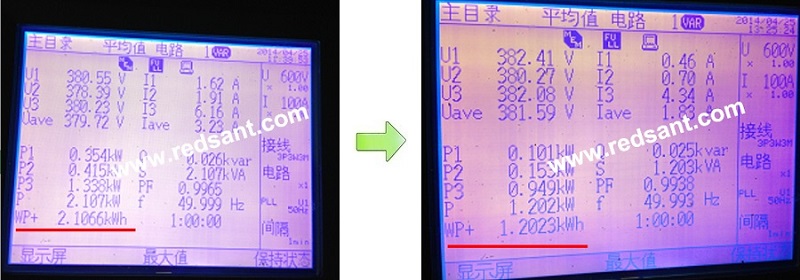

60 minutes power consumption 60 minutes power consumption

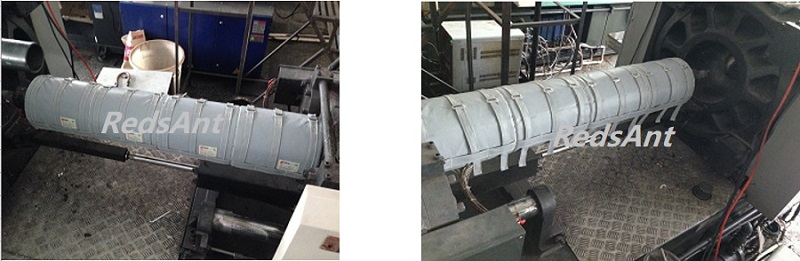

(without the insulation cover) (after installing the insulation covers)
